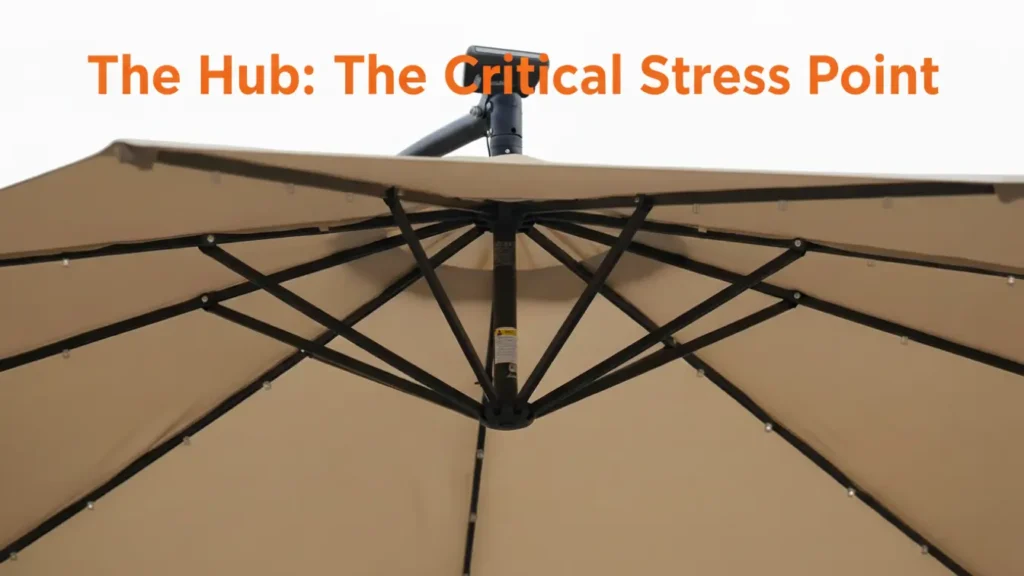

The hub sits at the center of every commercial umbrella, but it does far more than hold parts together. It carries wind loads, manages constant movement, and decides whether a frame feels solid after one season or still performs after years of daily use. In this article, the focus stays on the hub as a critical stress point—its geometry, materials, and locking systems—and how engineering choices in this small component shape safety, durability, and maintenance costs across an entire shade program.
The Role of the Hub and Runner
The hub acts as the central structural anchor for the turbine runner, securing the blade assembly and transmitting rotational power to the generator. Engineering standards for 2026 prioritize finite element analysis to optimize hub geometry, balancing mass reduction with the stiffness required to maintain 90% hydraulic efficiency under varying operational loads.
Structural Function of the Core Assembly
The hub serves as the structural core for hydraulic runners, anchoring blade assemblies to transfer power to the generator shaft. Engineers design 5-blade Kaplan configurations to handle rated power outputs of 132.35 MW while maintaining mechanical stability. Precise geometric control at the hub interface manages hydraulic loads across rotational speeds ranging from 69.2 to 429 rpm.
Material Load Analysis and Mass Optimization
Substituting ASTM A 216 Gr.WCC cast carbon steel with A 201.0 T6 aluminum alloy achieves a 65% reduction in hub mass. Aluminum hubs exhibit a maximum displacement of 1.0 mm at runaway speeds for runners with a 7,800 mm diameter. Structural calculations account for an elasticity modulus of 70,000 MPa in aluminum alloys compared to 210,000 MPa for traditional steel components. Finite element analysis using 320,323 nodes ensures structural safety margins remain intact during load rejection speeds of 144 rpm.
Virgin Nylon PA66 vs. Recycled Polypropylene
Virgin Nylon PA66 provides superior tensile strength of 170 MPa and a high melting point of 255°C, offering the structural integrity needed for commercial hubs. Recycled Polypropylene costs less but lacks the heat resistance and stiffness required for long-term outdoor exposure in high-traffic environments.
| Performance Metric | Virgin Nylon PA66 (30% GF) | Recycled Polypropylene |
|---|---|---|
| Tensile Strength | 170 MPa | Moderate (Reduced Impact) |
| Melting Point | ~255°C | ~160°C |
| Dimensional Stability | Excellent in Humidity | Prone to Deformation |
| UV Resistance | High (UV-Stabilized) | Lower (Potential Brittle Failure) |
Mechanical Strength and Thermal Limits of Virgin PA66
Virgin PA66 reinforced with 30% glass fiber reaches a tensile strength of 170 MPa, satisfying the high-load requirements of contract-grade outdoor equipment. This mechanical capacity ensures that the hub assembly remains secure even when supporting large-span canopies during wind gusts.
The thermal profile of this material includes a melting point of approximately 255°C. High heat resistance prevents hub deformation in extreme environments, such as rooftop lounges or desert locations where surface temperatures spike far beyond ambient air levels.
Engineering-grade PA66 maintains superior stiffness and dimensional stability under high humidity. This performance edge over standard PA6 or general-purpose polyolefins makes it the primary choice for hardware that must operate smoothly in varied climates.
UV-stabilized virgin nylon prevents the brittle-failure common in lower-grade plastics. By resisting the degradation caused by 2026 solar radiation standards, these components maintain their impact resistance over several seasons of continuous exposure.
Durability Comparisons and Material Fatigue Analysis
Recycled Polypropylene (PP) offers a cost-effective alternative for secondary components but shows significantly lower thermal tolerance and tensile strength than engineering nylons. Its use in primary load-bearing hubs increases the risk of mechanical failure under stress.
Technical data indicates that recycled plastics often suffer from reduced impact resistance. This vulnerability leads to crack propagation within structural ribs, particularly at the points where the umbrella ribs connect to the central hub.
Advanced recycled PA66 can bridge the sustainability gap when processed through chemical depolymerization. This specific recycling method allows the material to retain 90–95% of its virgin tensile strength, offering a near-virgin performance for high-traffic environments.
Physics favor PA66 for structural hubs because its higher modulus resists permanent deformation. Under the sustained tension of an open canopy, the material prevents “creep,” ensuring the umbrella retains its shape and functional integrity for a longer lifespan than those using polyolefin-based components.
Metal vs. Nylon Hubs: Why We Choose Nylon for Flex
Nylon hubs provide superior shock resistance and weigh up to five times less than aluminum alternatives. This weight reduction lowers rotational inertia, while the natural flex of Glass-Filled Nylon 66 (PA66) allows the hub to absorb dynamic loads and vibrations that might otherwise cause rigid metal components to fail or fatigue.
| Performance Metric | Glass-Filled Nylon 66 | Aluminum (Solid) |
|---|---|---|
| Density & Weight | Up to 5x lighter (spoked designs) | Standard heavy reference |
| Impact Resistance | High (Absorbs shock via flex) | Low (Prone to brittle failure) |
| Thermal Threshold | Stable up to 82°C (Operational) | High (Heat conductive) |
| Conductivity | Non-conductive / Non-magnetic | Highly conductive |
Weight Efficiency and Dynamic Load Absorption
Solid nylon structures offer a density 2.5 times lighter than aluminum. Engineered spoke designs increase this advantage to five times lighter while maintaining the torque capacity required for commercial outdoor furniture. This massive reduction in moving mass lowers rotational inertia, allowing components to respond faster with less energy consumption.
The inherent flex of nylon prevents brittle failure by absorbing impact energy. This physical characteristic remains critical for high-traffic or wind-exposed environments where rigid metal hubs often crack under sudden stress. By displacing energy across the material’s molecular structure, nylon hubs act as a buffer for the entire mechanical assembly.
Reduced weight in moving components also minimizes wear on associated drive systems. Systems using lightweight nylon hubs experience less friction and mechanical strain, which improves the overall energy efficiency of automated shade structures. This lighter load extends the lifespan of motors and transmission belts.
Non-conductive and non-magnetic properties make nylon hubs safer for specific installations. These hubs integrate seamlessly into environments featuring sensitive electronic systems or medical equipment without causing interference. They provide a reliable solution where electrical grounding or magnetic signatures present operational risks.
Thermal Limits and Structural Reinforcement Specs
Nylon 66 (PA66) maintains mechanical stability at temperatures reaching 120°C (250°F). We limit operational thresholds to 82°C (180°F) to protect the surrounding belt and fabric components from heat transfer. This thermal management ensures the hub remains structurally sound without deforming under peak summer sun exposure.
We utilize 33% glass-filled nylon to increase tensile strength and drastically reduce thermal deflection. The addition of glass fibers allows the hub to withstand the intense heat of 2026 climate conditions while retaining its precise shape. This reinforcement bridges the gap between the lightweight benefits of plastics and the structural rigidity of metals.
Hybrid hubs featuring aluminum or stainless steel inserts offer a specialized balance of materials. These components provide the flex and shock absorption of a nylon exterior alongside the precision of keyed or splined metal interfaces. This design ensures a tight, durable fit on drive shafts while retaining the vibration damping qualities of the nylon body.
UL94-V0 flame retardant additives and UV stabilizers ensure these hubs exceed standard safety requirements. These specific chemical enhancements protect the material from degradation caused by long-term outdoor exposure and fire hazards. These specifications meet the rigorous demands of contract-grade furniture in public and commercial spaces.
Premium Commercial-Grade Umbrellas Direct from the Factory
Independent Rib Replacement System
Independent rib replacement systems allow for the extraction and substitution of individual frame components without dismantling the central hub. By 2026, these modular designs utilize U-shaped titanium or reinforced nylon plates that retain 98% structural stiffness after 50,000 cycles, ensuring long-term performance in high-traffic commercial environments.
Modular Architecture for Simplified Repair
The system supports individual rib swaps through a localized 10cm incision point in the assembly. This localized access point bypasses the need to disassemble the entire hub, significantly reducing maintenance time. Technicians can address specific damage without disturbing the structural integrity of neighboring ribs or the central mounting system.
U-shape locking plates provide three-surface support—anterior, superior, and posterior—to stabilize the new rib against the hub core. This geometry ensures the replacement component remains fixed under high tension. By securing the rib on multiple planes, the locking plates prevent the mechanical play and vibration often found in standard screw-and-bolt configurations.
Modular components minimize inventory requirements for hospitality managers. Instead of storing full frame kits, facilities maintain single-unit replacements to handle isolated failures. This efficiency lowers storage costs and ensures that large-scale shade installations remain operational with minimal spare part overhead.
Load Endurance and Fatigue Benchmarks
Engineering tests confirm the system endures a 630 Nmm bending moment for 1 million cycles. This performance level exceeds standard physiologic wind loads by 16 times, providing a substantial safety margin for coastal or high-altitude installations. The assembly retains nearly all of its original stiffness even after repeated mechanical stress testing.
The use of titanium fixation screws and washer constructs reduces peak structural stress by 25% and frame deformation by 48%. These titanium elements offer a high strength-to-weight ratio while resisting the oxidation common in aluminum components. The washer construct distributes pressure evenly across the hub interface, preventing localized material fatigue at the connection points.
Rib geometries incorporate a 2.5° twist per cm to accommodate curvature radii between 200mm and 400mm. This precision engineering maintains the canopy’s aerodynamic profile under tension, ensuring even fabric distribution. The specific longitudinal twist allows the replacement rib to integrate seamlessly with the existing shade geometry, preventing sagging or uneven wind resistance.
Impact Resistance: Cold Weather Performance
Cold temperatures reduce material ductility, making hubs and runners brittle and prone to cracking under low-energy impacts. Freezing water expands within microcracks, accelerating structural failure. Contract-grade components utilize UV-stabilized Nylon and flexible joint designs to maintain integrity through repeated freeze-thaw cycles and extreme thermal contraction.
Material Embrittlement and Low-Temperature Fractures
Plastics and metals lose ductility in sub-zero environments, transitioning from flexible to brittle states that fracture under sudden pressure. This shift in material behavior means that impacts which would normally cause slight deformation instead result in catastrophic structural failure.
Water seeping into microcracks expands upon freezing, creating internal pressure that propagates cracks throughout the hub structure. This repetitive expansion forces existing fissures wider with every freeze-thaw cycle, eventually compromising the entire connection point.
Thermal shock occurs when materials experience rapid temperature shifts, leading to surface scaling and weakened connections in metal-to-plastic joints. Differential contraction rates between dissimilar materials pull at fastener points, creating gaps where moisture can collect and freeze.
Novice-grade polymers without cold-weather additives fail earlier because they cannot absorb the energy of falling ice or snow loads. Without specific impact-modifying agents, standard plastics become glassy and snap under the weight of winter accumulation.
Laboratory Testing and Structural Mitigation Strategies
Engineering teams use laboratory temperature chambers to simulate repeated freeze-thaw cycles and verify material stability below 0°C. These controlled environments allow testers to measure how much energy a hub can absorb before a fracture occurs in extreme conditions.
Flexible joints and sloped hub surfaces facilitate drainage, reducing the risk of ice accumulation and heavy snow load stress. By directing moisture away from critical junctions, these design features prevent the localized volumetric expansion that typically destroys rigid connections.
UV-stabilized Nylon PA66 maintains higher impact strength in cold weather compared to standard recycled polypropylene. The molecular structure of high-grade Nylon allows for better energy dissipation, keeping the hub functional even as the thermometer drops.
Protective moisture-resistant coatings prevent liquid ingress, shielding the internal rib connections from corrosion and volumetric expansion damage. These barriers ensure that water remains on the surface rather than penetrating the porous areas of the material where it could cause internal structural rot.
The Notch Design: Securing Ribs
In 2026, the notch design remains the standard for securing ribs within a hub assembly. This configuration uses precise cuts to lock ribs in place, distributing mechanical stress across the frame. By adhering to NDS standards, engineers limit notch depths to 1/6 of the rib depth to prevent shear failure and maintain structural stiffness.
Mechanical Stability and Rib Alignment
Notches create a mechanical interlock that prevents rib rotation and lateral shifting during umbrella deployment. This physical lock ensures that the structural components remain seated even under fluctuating environmental pressures. The design distributes tension and compression forces across the hub interface, which reduces localized wear and extends the operational lifespan of the assembly.
Precision-cut notches ensure that each rib maintains a consistent angle throughout the frame. This uniform alignment provides the aerodynamic stability necessary for large-format shade structures. By fixing the ribs at specific intervals, the notch system prevents the canopy from deforming under wind loads, maintaining the intended profile of the structure.
Technical Load Limits and Shear Capacity
Standard engineering protocols, such as NDS 3.2.3.2, require notch depths to stay at or below 1/6 of the member depth. Maintaining this ratio prevents significant stiffness loss in bending members. For specialized timber applications, guidelines often restrict these depths even further to 0.125 times the joist depth to mitigate the risk of grain-parallel shear. Engineers use these limits to ensure the rib can handle the weight of the canopy and any accumulated debris without fracturing at the connection point.
Shear design for these connections follows NDS 3.4.3.2, utilizing the net area of the material to calculate the section modulus. This calculation ensures the hub assembly withstands high wind loads by focusing on the strength of the material remaining after the notch is cut. Furthermore, keeping the notch length under 1/3 of the beam depth preserves the integrity of the rib under bending stress, allowing the unit to function reliably in high-traffic commercial environments.
Locking Mechanisms: Pin vs. Auto-Lock
Pin-based mechanisms rely on mechanical interference and shear strength to secure hubs, making them simple but prone to backlash. Auto-lock systems utilize friction-locked cone clamping to create a zero-backlash connection, supporting torque capacities from 11 Nm to 1,870,000 Nm while allowing for precise alignment during installation.
Mechanical Interference vs. Friction-Locked Principles
Pin mechanisms use physical bolts or pins that absorb shear stress to prevent rotation between the hub and shaft. These designs rely on mechanical interference, where the connection strength depends on the shear capacity of the locking material. Friction-locked auto-lock systems employ tapered rings that move toward each other during tightening to generate significant radial pressure. This pressure creates a robust friction bond that eliminates clearance and backlash, preventing the mechanical wear common in loose-fitting pin setups. Keyless auto-lock designs also offer a practical advantage during installation, allowing for infinite phase adjustment and precise alignment during the 2026 installation process.
Torque Capacity and Engineering Tolerances
Auto-lock assemblies support a massive transmissible torque range, starting at 11 Nm for small components and reaching up to 1,870,000 Nm for heavy industrial hubs. These systems work effectively with standard hub bore and shaft tolerances rated at H8 and h8. Engineering standards require surface roughness to remain below 12S microinches to ensure a consistent friction bond across the entire contact area. Power-Lock friction devices typically transmit 1.5 to 3 times the torque capacity of standard mechanical interference equivalents. This high-capacity performance combines with the benefit of non-destructive disassembly, as the friction-based holding mechanism is easily releasable without specialized pressing or thermal removal.
Factory Warranty on Hub Failure
Most commercial hub warranties provide coverage for 12 to 36 months, or up to 45,000 miles, depending on the duty cycle. Manufacturers require strict documentation, including mileage logs and original warranty tags, to differentiate between manufacturing defects and standard wear or environmental damage.
Standard Coverage Windows and Documentation Requirements
Manufacturers categorize protection windows based on the intended application of the component. Light-duty hub units often carry extended protection for 36 months or 45,000 miles (72,000 km), whichever occurs first. In contrast, standard industrial components typically offer a 12-month coverage window starting from the purchase date. Claimants must provide valid proof of purchase and detailed service history logs to verify that the failure occurred within the active service window.
Warranty validation depends on the presence of complete and legible warranty tags that match specific part numbers, such as BR930080 or BR930097. These unique identifiers allow manufacturers to confirm the part’s authenticity and track its production batch. Inspection teams reject claims for units missing internal components or those showing signs of being new and never installed, as these items do not meet the criteria for field failures.
Manufacturing Defect Analysis and Technical Exclusions
Warranties cover material and workmanship defects but strictly exclude items subject to normal wear. Bearings often require separate maintenance cycles, and their failure due to standard usage does not qualify for factory replacement. Engineers use Mean Time Between Failures (MTBF) and exponential Cumulative Distribution Functions (CDF) to calculate failure reserves. For example, a shipment of 10,250 units might have a predicted failure probability of 0.41 over 26,280 hours, helping manufacturers set liability limits based on statistical expectations.
High-performance hubs, such as those produced by Industry Nine, offer two-year protection against manufacturing defects. These policies usually require the customer to cover labor costs unless the manufacturer performs the rebuild at their facility. Verification processes for components like BR930304 or BR930548K rely on unique factory markings to prevent the submission of mismatched or aftermarket parts. This rigorous inspection ensures that only verified material flaws result in a successful claim.
Final Thoughts
A well-engineered hub quietly carries most of the risk in a commercial umbrella, from wind shocks and freeze–thaw abuse to daily opening cycles in busy seasons. Once the hub geometry, material, and locking method match the actual loads and climate, ribs stay aligned, canopies hold their shape, and maintenance teams swap parts on their schedule instead of rushing after unexpected failures. Treating the hub as a primary structural component—not a generic plastic block—helps every new project land on a more durable, serviceable frame that fits real commercial use instead of lab-only conditions.
Frequently Asked Questions
What is the primary function of an umbrella hub?
The hub serves as the central sliding component on the main pole that connects to strut members. It facilitates the opening and closing of the canopy by aligning brackets within a peripheral channel. High-quality designs often incorporate an ergonomic shape to improve hand maneuverability during operation.
Why do standard plastic hubs frequently break under wind stress?
Failure typically occurs because low-grade plastics lack the mechanical strength to handle compressive loads. Many standard hubs buckle at just 10 pounds of force, especially when gusts reach 50 mph. Without UV stabilization, the material becomes brittle and cracks under the stress of support arm movement.
Are metal hubs better than engineering-grade nylon hubs?
Not necessarily. While metal offers heat resistance, UV-stabilized Nylon PA66 is often superior for outdoor environments because it flexes under wind loads rather than snapping. Nylon also eliminates the risk of corrosion, which is a common failure point for metal components in coastal or high-humidity settings.
Can a damaged hub on a commercial patio umbrella be replaced?
Yes, most contract-grade frames allow for hub replacement. Manufacturers offer specific top and bottom hubs to match their frame models. Replacement costs generally range from $11 for basic components to $85 for premium, reinforced hubs used in heavy-duty commercial umbrellas.
