How to Replace a Solar Umbrella Panel: DIY Repair Guide

If your solar patio umbrella stops lighting up after sunset, the problem usually lies in a weak battery, worn solar panel, or corroded wiring rather than the LEDs themselves. Replacing the right component can revive your umbrella without spending on a new one.

This guide covers how to identify a dead solar panel battery, the step‑by‑step process for solar panel replacement for umbrella lights, and essential tools and safety practices. It helps you restore reliable lighting while saving time and cost.

How to Identify a Dead Solar Panel Battery

A dead solar panel battery shows very low or unstable voltage, much shorter runtime, slow or no charging, plus visible damage like swelling, leaks, or corrosion. Simple tools like a multimeter and load test confirm if it still holds charge.

When the solar umbrella lights go dark, it can be hard to know whether the issue lies in the solar panel, wires, or the battery itself. Understanding the right indicators helps you decide if you need solar panel replacement for umbrella lights or just a new battery. The following sections outline clear signs, tests, and safety checks to guide your diagnosis.

Voltage and Runtime Indicators

Checking voltage and observing runtime is the fastest way to assess the battery’s condition. A healthy 12 V solar battery normally reads around 12.6 V or higher when fully charged and resting. Readings consistently below 12.2 V suggest reduced capacity.

• ⚠️ Voltage drops below 11 V under a small load point to failing cells.
• ❌ A sudden collapse, for instance from 11.3 V to 9.6 V in seconds, often signals severe internal damage.
• 💡 Noticeably shorter runtimes—umbrellas dimming hours earlier or before midnight—show the battery has reached end‑of‑life.

Visual and Thermal Signs of Battery Damage

In our experience manufacturing solar-powered umbrellas, physical changes are clear indicators of failure and safety risk. These should never be ignored during inspection.

• ⚠️ Swollen or bulging battery cases are critical safety warnings.
• ❌ Leaking electrolyte, white crust, or heavy terminal corrosion means internal damage.
• ⚠️ Cracked or misshaped battery housing shows structural failure.
• 💡 Excess heat, unusual buzzing, or chemical smell during charging suggests internal short circuits and calls for immediate replacement.

Charging Behavior and Age Considerations

Charging speed and pattern reveal much about cell health. If the battery stays near 50% charge all day or charges abnormally slow despite full sun, the cells may be deteriorated.

• ✅ Lead‑acid batteries typically last 300–1,500 cycles or about 3–7 years.
• ✅ Lithium variants usually keep 70–80% capacity for more than 2,000 cycles when properly managed.
• ⚠️ Overcharging, leaving the battery flat, and heat exposure all shorten service life.

Practical Testing to Distinguish Battery vs. Panel Issues

A few simple multimeter tests help you confirm if the problem is the battery or the solar panel itself.

• 💡 Measure resting voltage after a sunny day. A result well below rated voltage means the battery is weak even if the panel works.
• ✅ Apply a light load such as an umbrella LED string. A voltage drop of more than 2 V right away indicates low capacity.
• ❌ If lights flicker or shut off within minutes despite a functional panel, the battery is likely dead.
• ⚠️ Load voltage is more reliable than surface voltage, which can temporarily mask failure.

Common Misconceptions and Safety Alerts

Many users assume the solar panel or controller failed when lights stop working, but most cases relate to normal battery aging. Recognizing this prevents unnecessary panel replacements.

• 💡 Batteries are wear components—degradation after years of cycling is expected.
• ⚠️ Swelling, leaks, or chemical odor represent safety hazards, not just performance loss.
• ✅ Periodic battery changes help keep solar umbrellas usable for many seasons.
• 💡 Regular inspections and voltage checks are low‑cost ways to pinpoint true failure sources before scheduling solar panel replacement for umbrella systems.

Step-by-Step Guide to Replacing the Battery

Replacing the battery in a solar‑powered patio umbrella typically takes 10–20 minutes and involves powering off the umbrella, accessing the battery compartment, matching the battery’s chemistry and voltage, swapping the old cell with a compatible new one, then testing and fully charging it under sunlight.

This guide explains how to safely and efficiently replace the battery in a solar patio umbrella. Whether you are troubleshooting dim or non‑working LED lights or planning preventive maintenance, these steps will help you handle the process effectively.

Understanding Solar Umbrella Battery Specifications

Before starting, identify which type of battery your umbrella uses. In our experience, most solar umbrellas rely on rechargeable chemistries designed for outdoor applications.

• 💡 Common chemistries include NiMH AA or AAA rechargeable cells (1.2 V, 600–1500 mAh) and some use Li‑ion packs (3.2–3.7 V) for higher capacity models.
• 💡 Voltage setups typically use single or multiple AA cells in series—for example, 1.2 V for one NiMH cell or 2.4 V for two in series.
• 🚀 Lifespan averages 1–3 years outdoors, with Li‑ion cells providing longer cycle life and less maintenance than NiMH.

Matching the right chemistry and voltage ensures efficient charging from the solar panel and prevents premature failure.

Tools and Safety Preparations Before Replacement

Gather your tools and prepare the workspace before opening the battery compartment.

• ✅ Tools: small Phillips screwdriver, potential hex key or wrench, and a multimeter for verifying battery voltage.
• ⚠️ Safety gear: wear gloves and goggles to prevent injury from sharp edges or old batteries.
• ❌ Never proceed while power is connected—switch off the umbrella, unplug adapters, or disconnect main power if applicable.

Step-by-Step Battery Replacement Process

Follow these steps carefully for a smooth battery replacement process. It usually takes only 10–20 minutes.

• 1️⃣ Check battery compatibility by reading label details: chemistry, voltage, capacity (mAh), and size.
• 2️⃣ Remove screws from the battery compartment, usually found in the hub or under the solar panel cap.
• 3️⃣ Disconnect and remove the old battery carefully. Avoid shorting any terminals during removal.
• 4️⃣ Inspect contacts and the compartment. Clean corrosion or dirt with a dry cloth if needed.
• 5️⃣ Insert the new battery with correct polarity and ensure it fits securely in place.
• 6️⃣ Reassemble the housing and tighten screws just enough to hold the parts firmly without cracking plastic surfaces.
• 7️⃣ After assembly, switch the umbrella on and let it charge in direct sunlight for 6–8 hours to restore full power.

Maintenance Tips and When to Replace the Battery

Regular maintenance extends your solar umbrella’s lifespan and helps avoid unnecessary costs. Pay attention to these key points:

• 💡 Typical battery replacement every 1–3 years depending on climate and usage. If LEDs fade after 1–2 hours of charging, a replacement is due.
• ⚠️ Avoid storing umbrellas in hot locations or leaving batteries deeply discharged over long periods.
• ✅ During off‑season, store umbrellas powered off in cool, shaded areas to minimize degradation.
• 🔍 Use a multimeter to check solar panel voltage. If the panel delivers power but lights remain dim, replacing the battery is the logical next step.

Common Mistakes and Safety Considerations

Many issues occur during replacement due to mismatched or unsafe installation practices. Here are the most common mistakes to avoid:

• ❌ Never replace NiMH or Li‑ion batteries with non‑rechargeable alkaline cells—they may leak or rupture.
• ⚙️ Always match voltage and chemistry. Choosing a higher mAh rating is acceptable if the cell size fits the compartment.
• ⚠️ Disconnect all power before touching any wires or electronic modules.
• 🔥 If you notice swelling, melting, or burnt odor, stop immediately and consider replacing the entire lighting module.
• ♻️ Dispose of used batteries at certified recycling centers—never discard them with household waste.

Cost-Benefit Perspective of Battery Replacement

Replacing the battery delivers strong value compared with buying a new solar umbrella. The cost difference is substantial, especially for commercial or hospitality projects.

A quick 10–20 minute swap restores full function without replacing the entire structure. It’s a sustainable approach for hospitality, retail, and commercial buyers maintaining outdoor environments under large-scale programs with Patiofurnituresco.

Tools and Materials Needed for the Repair

For repairing solar panel units on patio umbrellas, you mainly need basic hand tools such as screwdrivers, pliers, wire cutters, a compatible replacement solar panel matching voltage and connectors, fresh rechargeable NiMH AA or AAA batteries, and basic safety gear like gloves and a stable step stool.

Repairing a solar-powered patio umbrella requires a few dependable tools and materials to ensure each component is safely opened, tested, and reassembled. In our experience, preparing the right equipment before starting the job prevents accidental damage and improves the repair outcome.

Essential Hand Tools for Solar Umbrella Repair

Working with the solar head casing and LED wiring system involves precision. The following hand tools help you open the enclosure, manage connections, and adjust the wiring safely.

• 🪛 Screwdrivers (flathead, Phillips, Torx) to open the solar head casing and battery compartments using proper bit sizes to protect screws.
• 🔧 Pliers (needle-nose or combination) for pulling connectors, bending or holding wires, and removing corroded contacts.
• ✂️ Wire cutters and strippers for trimming and preparing wires when replacement panels have raw leads or different lengths.
• 🔪 Utility knife to trim heat-shrink tubing, open sealed packaging, or score silicone sealants gently.
• 💡 Multimeter (optional but recommended) to check panel voltage, continuity, and battery condition during diagnosis.

Safety and Access Tools

Solar umbrella repairs often involve light electrical work at height. Keep these safety tools ready to ensure a controlled working environment.

• 🪜 Stable step stool or small ladder to reach the umbrella hub securely without stretching or leaning.
• 🧤 Work gloves to prevent cuts from sharp frame edges or rib joints.
• 🕶️ Safety glasses to shield eyes from dust, clipped wires, or broken connectors during cleaning and stripping.

Core Materials and Consumables

When performing a solar panel replacement for umbrella lighting systems, matching specifications and clean electrical connections are essential for consistent operation.

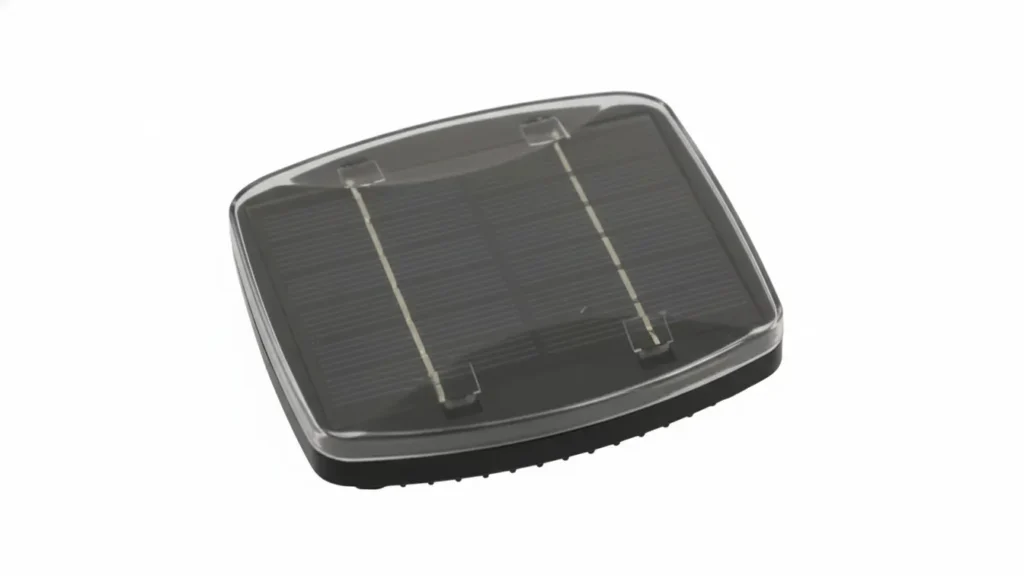

• 🔌 Replacement solar panel or head unit that matches the original form factor, connector type, and voltage rating for compatibility.
• 🔋 Fresh 1.2 V NiMH AA or AAA batteries with typical capacities of 600–1000 mAh. Higher capacity options can increase light runtime.
• 🧽 Contact cleaner (isopropyl alcohol and cotton swabs) to remove corrosion and improve contact reliability.
• 🧴 Dielectric grease to protect terminals and slow oxidation of exposed components.
• 🔥 Heat-shrink tubing or quality electrical tape to insulate spliced wires from moisture intrusion.
• 🪢 Cable ties to organize and secure wiring along umbrella ribs, preventing pinches when folding or tilting.

Understanding Electrical Specifications

Knowing typical electrical values helps you select replacement components and verify system integrity with a multimeter.

Common Pitfalls and Best Practices

Minor mistakes during replacement can lead to intermittent lighting or short battery life. Follow these practices to improve success rates and ensure durability.

• ⚠️ Battery failure and corroded contacts are the most common causes of light malfunction. Clean and test before replacing the solar panel.
• 💡 Use a multimeter to determine whether voltage loss comes from the panel, wiring, or battery before buying new parts.
• ✅ Reuse original wiring when possible but check for UV cracking or corrosion along the ribs.
• 🔧 Always use the proper bit size and insulated hand tools to avoid damaging connectors or PCB surfaces.
• 🚀 Standardize components (battery types, solar heads, connectors) if managing multiple umbrellas across a property to simplify maintenance.

With the right mix of tools, compatible solar parts, and adherence to safety steps, you can extend the life of your solar umbrella and restore its lighting performance efficiently.

Elevate Your Outdoor Spaces with Custom Commercial-Grade Umbrellas

Partner directly with Patiofurnituresco to access durable, low-MOQ outdoor shade solutions engineered for resilience and style. Leverage expert OEM/ODM customization and global logistics designed to scale your business confidently.

Start Your Custom Project →

Safety Precautions When Handling Solar Panels

When handling solar panels, use proper lifting techniques involving two people, wear appropriate personal protective equipment such as gloves and eye protection, avoid carrying panels on ladders, and utilize mechanical aids like carts or hoists to move panels safely.

Working with solar panels, whether for rooftop installations or replacing a small unit in a solar umbrella, demands careful handling to prevent both physical injury and electrical hazards. Even compact panel modules can present shock and fall risks if not managed safely.

Key Safety Data for Handling Solar Panels

Each component of a solar system, from the panel frame to the connecting cables, has specific safety parameters that must be respected to avoid accidents and damage. In our experience, many handling-related injuries result from overlooking simple but crucial steps.

• ⚙️ Typical residential solar panel weight ranges from 40–50 lbs (18–23 kg), requiring a two-person lift.
• ⚠️ Maintain at least 10 feet (3 meters) distance from overhead power lines during installation or removal.
• 💡 Common lifting injuries include strains, sprains, and back injuries — always lift using your legs, not your back.
• 🧰 Required PPE: hard hats, gloves, steel-toed shoes with rubber soles, eye protection, and safety harnesses for rooftop work.
• ⚡ Electrical risks exist because panels can generate power even when disconnected; treat all wiring as live.
• ⚠️ Fall protection becomes mandatory at heights above 6 feet (1.8 meters) using guardrails, nets, or harnesses.
• ☀️ Cover panels with opaque sheets when not in use; they can heat rapidly under sunlight and stay energized.

Common Risks and Best Practices

Solar panels, including smaller ones used for lighted patio umbrellas, are heavy, fragile, and electronically active. Improper handling can lead to broken glass, electrical shock, or damaged components that make solar panel replacement for an umbrella unsafe or ineffective.

• ⚠️ Avoid pinch or crush injuries from sharp frames and edges; wear cut-resistant gloves and eye protection.
• ⚡ Disconnect panels from batteries or power sources before touching any wiring or terminals.
• ❌ Never touch panels or connectors when wet or with metal tools to prevent electrical shock.
• 🚫 Do not step or press on the panel surface — even small cracks can reduce performance or cause hazards.
• 🌤️ Keep panels shaded or covered when not in use to limit heat and electrical output.
• 💪 Use two hands for lifting, and ensure secure footing, especially when working on an umbrella pole or frame.
• ✅ Commercial installers should follow OSHA rules related to fall protection and lockout/tagout protocols for safety.

For those tackling a solar panel replacement on an umbrella, remember that even small modules can retain voltage. Work on a stable surface, wear protective gear, and check polarity before reconnecting components. These steps keep both you and your equipment safe while extending the service life of your outdoor solar lighting system.

Troubleshooting Other Common Issues

If a solar lighted umbrella stays dark after replacing the solar panel or battery, check for bad wiring, failed LED strings, defective switches, dirty solar cells, or incorrect battery type and installation. These issues can often be diagnosed with simple tests taking 5–15 minutes before deciding to replace the unit.

When a solar-powered umbrella remains dark despite recent battery or panel replacements, the issue often lies in smaller electrical or environmental factors rather than the hardware itself. In our experience, most cases can be resolved with visual inspection and basic testing within a few minutes.

Battery and Charging Checks

The first step is confirming that the correct type and orientation of batteries are being used. Umbrella lights typically run on 1–2 AA or AAA Ni‑MH rechargeable cells rated at 1.2 V. Using 1.5 V alkaline batteries can cause improper charging and early failure.

• 💡 After 6–8 hours in full sunlight, umbrellas should provide around 6–10 hours of illumination.
• ⚠️ If lights fade after less than 1 hour, the batteries may be weak or not charging properly.
• ✅ Check that battery polarity matches the markings and ensure contacts are clean and tight to prevent flicker or no-light issues.

Solar Panel and Environmental Factors

Shading, dirt, or poor orientation can lower charging efficiency even if the panel and batteries are in good shape. A clean and properly aligned panel is essential to keep the system operating at full strength.

• ⚠️ Dirt or shade can cut panel output by 30–50%, significantly dimming the LEDs.
• 💡 Wipe panels gently with a soft cloth and mild soapy water, then dry before letting them charge in full sun for a day.
• ⚠️ Over‑tightened or misaligned solar caps may damage internal contacts, blocking the electrical path to the battery.

Switches, Sensors, and Wiring

Mechanical and electronic components often fail due to repeated outdoor exposure. Switches and sensors that have degraded can stop lights from turning on or off correctly.

• ⚠️ Manual on/off or mode switches often fail after 1–3 seasons; bridging the contacts temporarily can confirm if the switch is faulty.
• 💡 Check photoresistors that control dusk triggering; a blocked or damaged sensor can keep lights off at night or drain the battery during daytime.
• ✅ Inspect wiring and connectors for corrosion or loose joints; a single broken feed line can darken all LEDs.

Water Ingress and Corrosion

Rain and moisture are common culprits in damaged solar lighting. Many solar caps are rated only for minimal splash resistance (IPX0–IPX2), leaving them vulnerable after repeated wet weather cycles.

• ⚠️ Look for rust on circuit boards, cloudy panel covers, or white deposits inside the housing.
• 💡 Minor corrosion can sometimes be cleaned with a small, dry brush or contact cleaner.
• ❌ If damage has spread across the circuit board or battery terminal, replacing the solar module is usually the only reliable fix.

Common Misconceptions and Best Practices

Before deciding to replace the entire solar umbrella, it helps to understand which steps save time and money. Many users assume any brightness issue means the panel is dead, but that’s rarely the case.

• ⚠️ Installing regular alkaline batteries instead of Ni‑MH cells can cause charging failure and shorten component life.
• ❌ Universal solar garden light heads may not work with umbrella systems due to different voltage and connector designs.
• 💡 Follow a sequential troubleshooting flow: battery check → panel inspection → switch test → wiring continuity. This isolates faults efficiently.
• ✅ Controller board repair is rarely economical; replacing complete solar kits or umbrella tops often leads to more reliable results.

When to Consider Buying a New Umbrella

Replace the entire solar-lighted umbrella when repair costs approach the price of a new unit, when several components fail together, or when the umbrella’s structural wear limits future use, making repair inefficient.

Determining when to replace a solar-lighted umbrella depends on how much the repair will cost, the age of the product, and the condition of both its solar and mechanical parts. Below we break down the main factors that can help you decide the right time to invest in a new model instead of extending an old one.

Cost and Lifespan Considerations

Modern solar panels used in umbrellas typically last around 25–30 years, with performance degrading by about 0.4% per year. Warranty terms often guarantee around 90% of their original capacity at 10 years and 80% at 25 years.

In our experience, repair makes sense when only one specific part—like a battery or a connector—fails. If the repair estimate reaches 80% of the cost of a new umbrella, a full replacement is the smarter move. Labor, parts, and your own time should all be part of the cost comparison.

Common Failure Points and Repair Viability

Solar panels themselves rarely fail completely. Most issues come from small electrical parts such as batteries, connectors, wiring, switches, or LEDs, all of which are inexpensive to replace.

• 💡 Check batteries and wiring before assuming the panel has failed.
• ✅ For umbrellas aged 3–5 years, replacing batteries or fixing wiring can extend operation cost-effectively.
• ⚠️ If several systems—battery, LEDs, and solar modules—fail at once, replacement becomes more practical than repair.

Mechanical Wear and When It’s Time to Replace

Fabric fading, frame rust, or broken ribs can limit the umbrella’s usefulness long before the solar panel loses capacity. A cracked crank or bent pole means the structure has reached the point where repair no longer makes sense.

• ❌ Replacing solar components on a worn or unstable frame wastes money.
• ⚠️ Mass-market umbrellas usually need full replacement after 5–7 years of use due to textile and mechanical wear.
• ✅ Consider full replacement when non-solar damage affects usability or visual appeal.

Sustainability and Upgrade Advice

Before deciding to buy new, try at least one low-cost repair focused on batteries or LED circuits. These are the components most likely to fail first and are easy to replace.

• ♻️ Save old solar panels or battery holders for spares to cut waste.
• 🚀 After about 10 years, solar lighting upgrades often improve brightness and efficiency, making replacements worthwhile if the frame is still solid.
• 💡 Plan replacements only when several subsystem failures or structural issues happen at once. That approach keeps both cost and environmental impact balanced.

Maintenance Tips to Extend Battery Life

To extend battery life in solar umbrellas or similar small solar lighting systems, keep the battery cool and ventilated, avoid deep discharges by following manufacturer’s discharge limits, and perform regular inspections such as cleaning contacts, checking for corrosion, and replacing weak batteries before full failure.

Solar-powered umbrellas rely on compact rechargeable batteries that store the energy collected by the panel. By maintaining these batteries properly, owners can stretch the system’s lifespan and avoid frequent replacements or complete lighting failure.

Understanding Battery Lifespan and Types

Batteries used in solar umbrellas differ in chemistry and durability. Knowing these differences helps set realistic expectations and maintenance schedules.

• 💡 General solar batteries typically last between 5–10 years, depending on usage conditions and charging depth.
• 🚀 Lithium-iron phosphate (LFP) batteries can operate for 15–20 years and provide roughly 6,000–10,000 cycles before reaching 70–80% of their original capacity.
• ⚠️ Consumer-grade solar lighting often uses AA or 18650 cells rated for about 500–1,000 cycles, which translates to shorter service life under daily use.

In our experience, choosing a higher‑grade cell or replacing older chemistry with newer lithium variants is one of the most effective improvements for users with ongoing solar lighting issues.

Key Maintenance Practices to Prolong Battery Life

Routine care can significantly extend a solar umbrella’s runtime and reduce battery degradation. Focus on controlling heat, charge levels, and cleanliness.

• ✅ Keep batteries cool and ensure air circulation around the housing to reduce thermal wear.
• 💡 Avoid deep discharges; maintain the cycle between 30–80% of charge to extend the total number of usable cycles.
• ⚠️ Conduct visual inspections every few months to check for swelling, leaks, corrosion, or loose terminals.
• 🚀 Clean the solar panel surface every 6–12 months to maintain charging efficiency, especially in dusty or humid environments.
• 💡 Match maintenance to battery type:
  • For lead-acid systems: top up with distilled water and perform equalizing charges.
  • For lithium-based systems: monitor battery management systems and install firmware updates when available.

Small steps like panel cleaning and avoiding over‑discharge often restore performance before users consider complete solar panel replacement for umbrella systems.

Critical Factors and Common Misunderstandings

Many solar umbrella batteries fail prematurely not because of capacity limits but due to overlooked operational factors and myths about “maintenance-free” designs.

• 💡 Depth of discharge (DoD) matters most—shallower cycles can extend usable life by up to 25× compared to deep cycling.
• ⚠️ Heat exposure speeds up internal chemical wear; keeping the battery shaded and ventilated prolongs service life.
• ✅ Even sealed lithium batteries benefit from occasional checks and firmware calibration, contrary to the belief that they require no upkeep.
• 🚀 Lead-acid types need consistent attention, including cleaning terminals and checking electrolyte levels, unlike lithium variants.
• 💡 Proper system sizing and stable energy usage reduce stress on cells more effectively than chasing small maintenance tweaks.

By following these steps, most solar umbrella owners can avoid unnecessary replacements and keep their lighting systems operational season after season.

Frequently Asked Questions

Final Thoughts

Repairing a lighted patio umbrella often comes down to small, manageable fixes such as battery swaps, panel cleaning, or wiring checks. With accurate testing, safe handling, and compatible replacement parts, you can restore full lighting performance for just a few dollars. Keeping batteries healthy and maintaining clean solar panels extends system life while reducing waste and downtime.

Regular maintenance and smart part selection save long-term costs for both homeowners and commercial operators. Instead of replacing the whole unit, choose reliable, matching solar components and focus on preventive care. This approach keeps outdoor spaces bright while preserving sustainability and budget efficiency with trusted suppliers like Patiofurnituresco.
